NS has an impulse electric circuitry, powerful solenoid, temperature senor, automatically sealed by pressurization power operation when step on foot switch.
"W" type - double element on the up and down bar. |
| |
 |
|
| NS-300/2/5/10 |
4000x470x440 |
| NS-450/2/5/10 |
540x470x440 |
| NS-600/2/5/10 |
690x470x440 |
| NS-800/2/5 |
900x500x200 |
| NS STAND |
690x500x200 |
Option : Printer
W-model : Two heating elements (up and down)
Carton box dimension : In case of NS-450/5 470(L) * 540 (W) * 440mm(H)
Stander box dimension : 690(L) * 500(W) * 200mm(H)
2 cartons for one goods with head and stander. |
|
| |
 Specifications |
| DESCRIPTION |

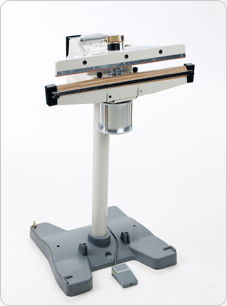

NS Semi Auto Sealer |
| DIMENSION |
540(W)470(L)440(H) IN CASE OF NS-450 |
| TEMPERATURE OF SEALING |
150 MAX |
| SEALING TIME |
MIN 0.5 Sec-MAX 2.5 Sec |
| REGULAR SEALING TIME |
IT'S DIFFERENT ACCORDING TO THE KINDNESS OF FILM |
| LENGTH OF SEALING |
From 2mm to 10mm(W) * 2mm to 800mm(L) |
| POWER CONSUMPTION |
950W |
| SEALING THICKNESS |
0.5mm Below |
| WEIGHT |
28kg |
|
| |
| Features
|
| - Solenoid not by air type, but by electric type decreases useless working space. |
| - As NS operated by electric power not by man's hand give stable sealing power to the jaw on the top of the machine, user can get clean and flat sealing face in the film. |
| - Auto operating minimizes human labor. |
| - Transformer, which is very important part in the middle of sealer functions, is made of the best quality coil and parts by Posteel (one of World best steel company) so it can be capable of allowing high volume and it cannot accept any followings in terms of quality. |
| - NS dedicated to hand assembling give no troubles and semi-permanent working life. |
| - Controller composed of standard and pure parts stabilizes all operating. |
| - By rolled teflon cloth under sealing part user is easy to replace. |
| - NS M-type (multi-angle) supplies various angles in head part to make sealing even a liquid contents and more its angle is available to transform from 0ĄŁ to 90ĄŁ. |
| - As the pedal for NS sealer is wider than that of other goods, it can make PHS sealer stabilize on the way of your working. |
| - Fuse in controller is designed to be turned off by itself in case of over current. |
|
| |
| Semi Auto Sealers - NS-M Model |
|
|
| |
| Designed to get sealing with ease like liquid foods, using multiple angle of head part. |
| |
 |
|
| NS M-300/2/5/10 |
4000x470x440 |
| NS M-450/2/5/10 |
540x470x440 |
| NS M-600/2/5/10 |
690x470x440 |
| NS M-800/2/5 |
900x500x200 |
|
|
| |
| Specifications |
| DESCRIPTION |
NS Semi Auto Sealer |
| DIMENSION |
540(W)470(L)440(H) IN CASE OF NS-450 |
| TEMPERATURE OF SEALING |
150 MAX |
| SEALING TIME |
MIN 0.5 Sec-MAX 2.5 Sec |
| REGULAR SEALING TIME |
IT'S DIFFERENT ACCORDING TO THE KINDNESS OF FILM |
| LENGTH OF SEALING |
From 2mm to 10mm(W) * 2mm to 800mm(L) |
| POWER CONSUMPTION |
950W |
| SEALING THICKNESS |
0.5mm Below |
| WEIGHT |
28kg |
|
| |
| Features
|
| - Solenoid not by air type, but by electric type decreases useless working space. |
| - As NS operated by electric power not by man's hand give stable sealing power to the jaw on the top of the machine, user can get clean and flat sealing face in the film. |
| - Auto operating minimizes human labor. |
| - Transformer, which is very important part in the middle of sealer functions, is made of the best quality coil and parts by Posteel (one of World best steel company) so it can be capable of allowing high volume and it cannot accept any followings in terms of quality. |
| - NS dedicated to hand assembling give no troubles and semi-permanent working life. |
| - Controller composed of standard and pure parts stabilizes all operating. |
| - By rolled teflon cloth under sealing part user is easy to replace. |
| - NS M-type (multi-angle) supplies various angles in head part to make sealing even a liquid contents and more its angle is available to transform from 0ĄŁ to 90ĄŁ. |
| - As the pedal for NS sealer is wider than that of other goods, it can make PHS sealer stabilize on the way of your working. |
| - Fuse in controller is designed to be turned off by itself in case of over current. |
|
| |
| |
| |
